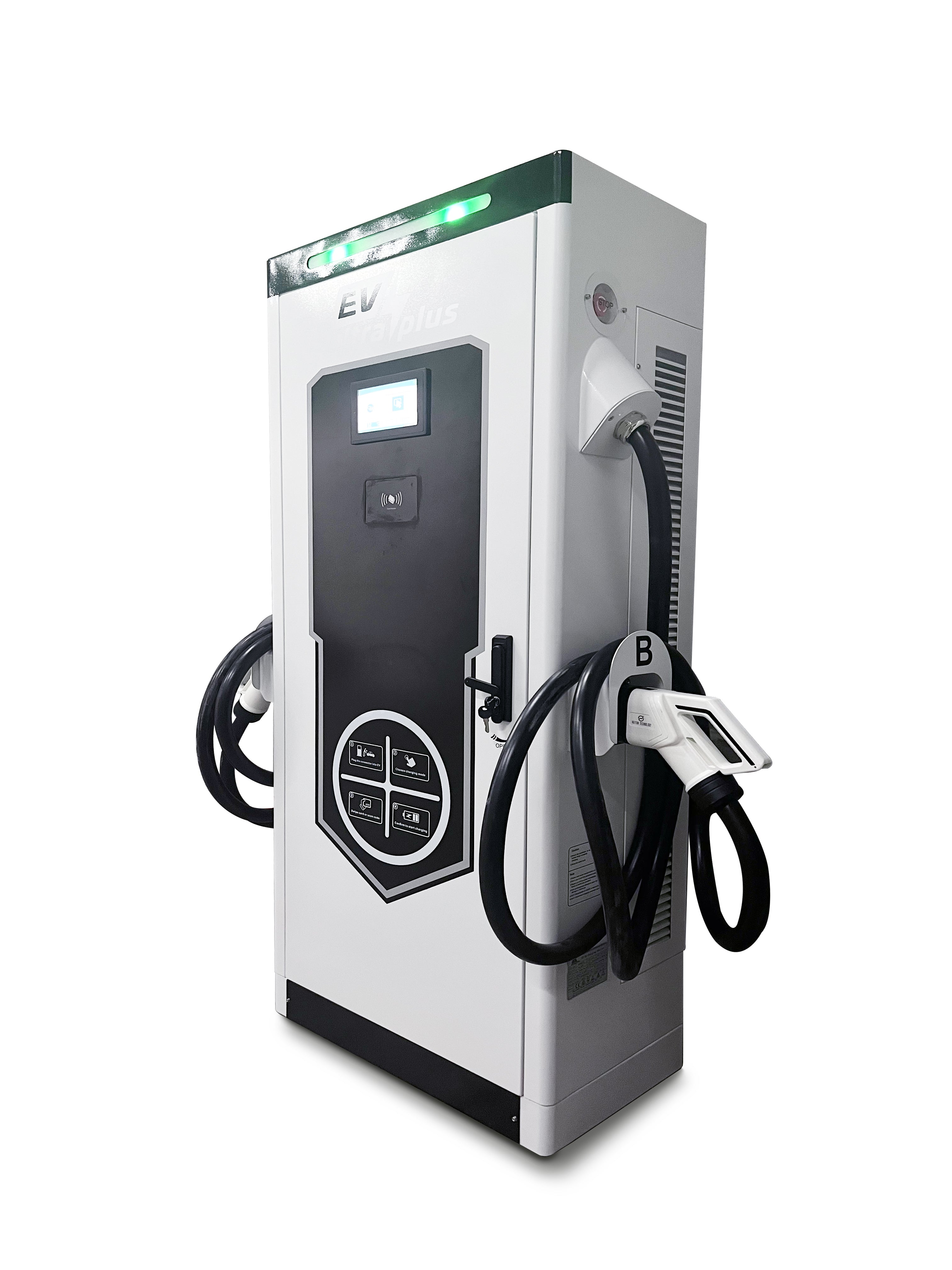

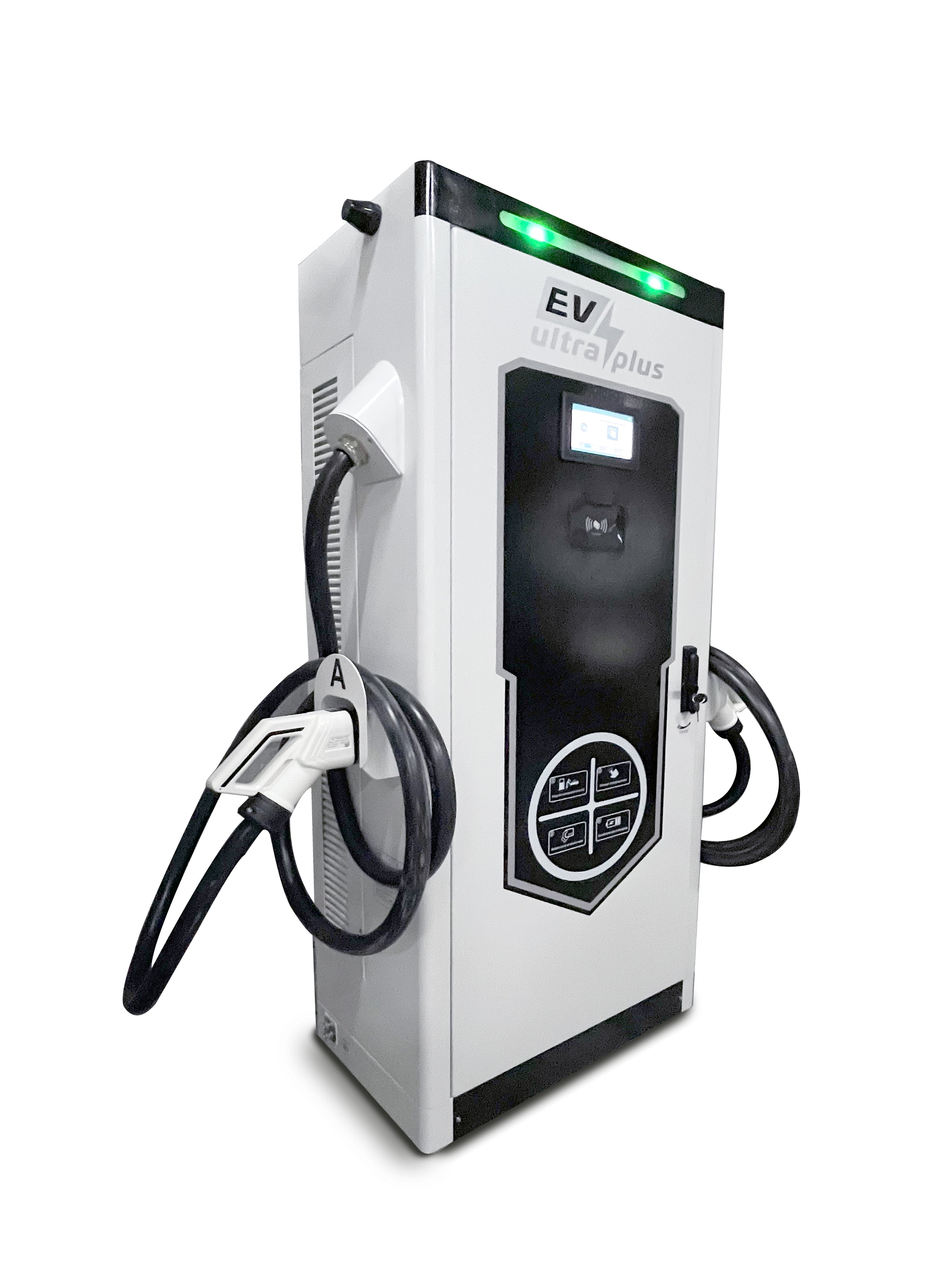

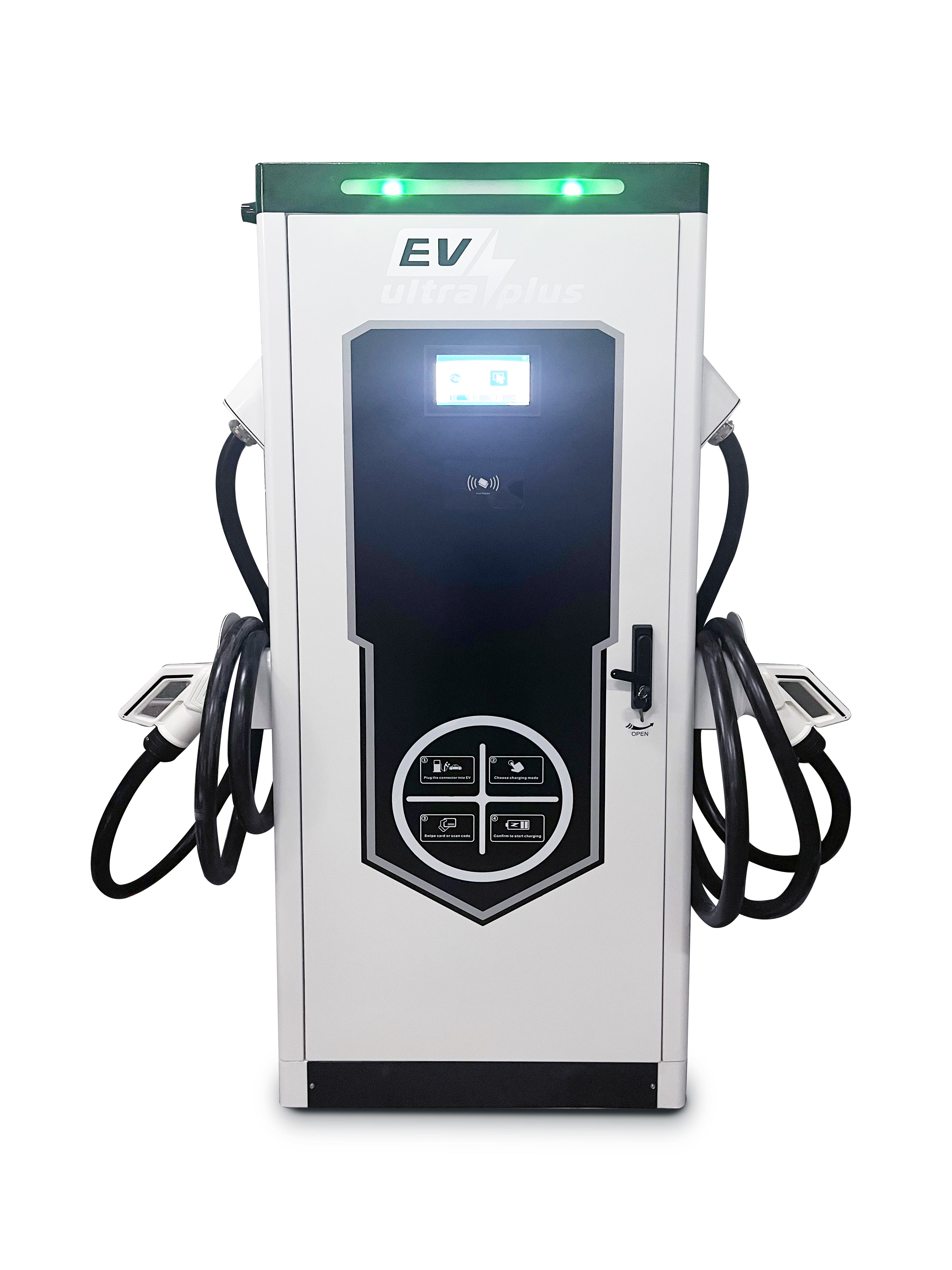

EVUP DC 60/80kW Smart Charger

• DC Output Connection
  Charging mode: CCS2 or CHAdeMO
  Output power: Rated power DC 60kW & 80kW
  Output voltage: 200V ~ 1000V
  Max output current: 200A
  Number of outputs: 2*CCS2, or 1*CCS2+1*CHAdeMO
  Peak efficiency >95%

• AC Input Connection
  Earthing system: 3P, N, PE
  Input voltage/current: 3-phase 400V AC±15%, 92A (60kW) & 123A (80kW)
  Input frequency: 45 ~ 65Hz
  Power factor ≥0.99
  Harmonic distortion (THDI) ≤5%

• General Characteristics
  IP and IK rating: IP56, IK08
  Operating altitude ≤2000M
  Operating temperature range: -30°C ~ +50°C
  Storage temperature range: -40°C ~ +80°C
  Mounting: Ground Mount
  Dimensions: H:1765mm W:750mm D:413mm
  Cable length: 5.0m Standard

• User Interface
  Status indication: LED / LCD / APP
  User interface: Charge APP
  Connectivity: 4G, LAN
  Communication protocols: OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
  User authentification: APP, RFID Card, Credit Card (Optional)

• Software Update: OTA updates via web portal

• Certification and Standards
  Safety and compliance: IEC 61851; IEC 62196; IOS 15118; IEC 61000-4-5
  EMC compliance: EN55011; EN55022

• Warranty: 24 months, warranty extension possible

• Safety Protection
  Multiple Protection: Over / Under voltage protection, Overload protection, Short Circuit Protection, Over / Under temperature protection, Grounding Protection, Surge Protection.
