EV Ultra Plus

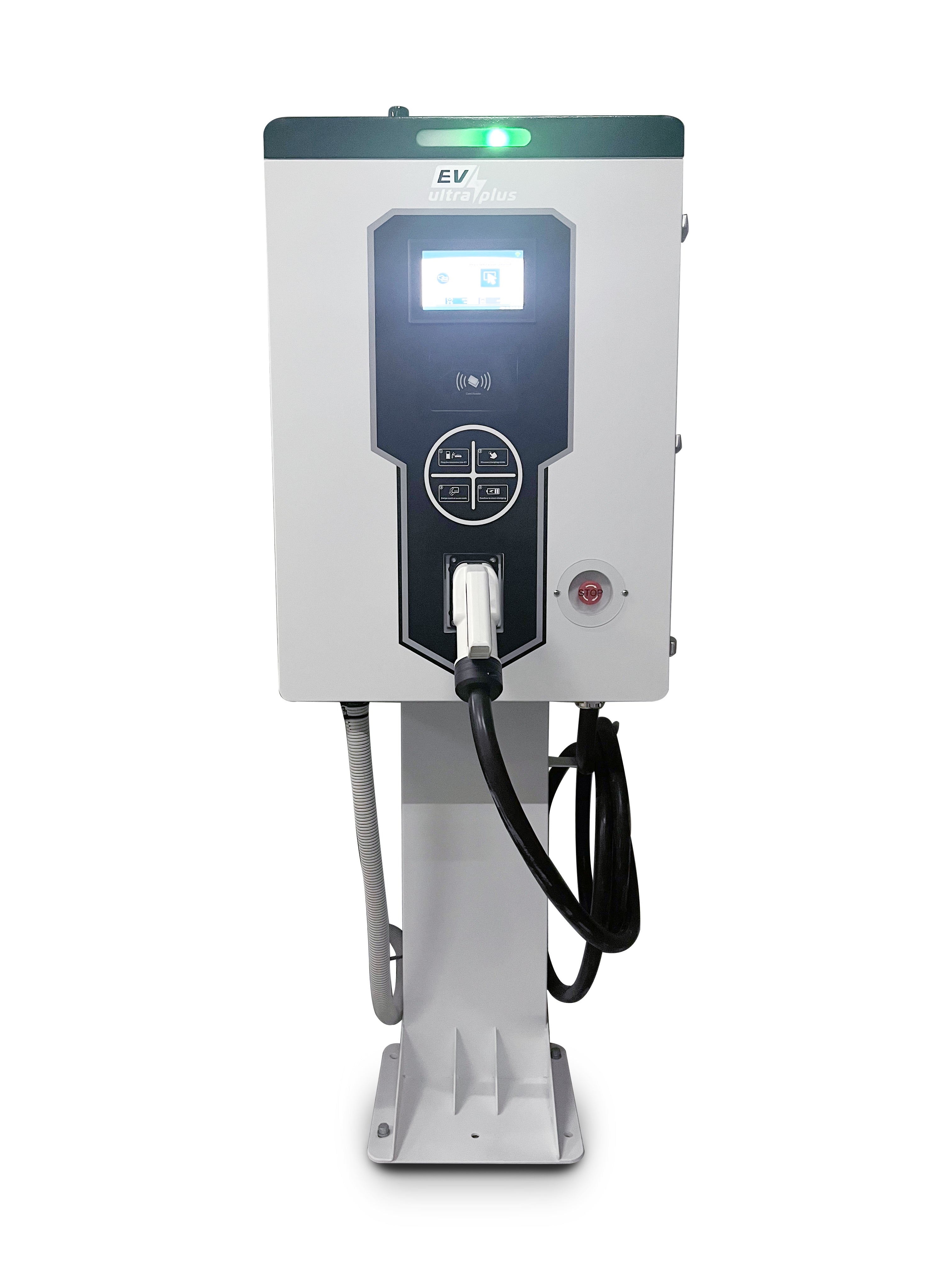

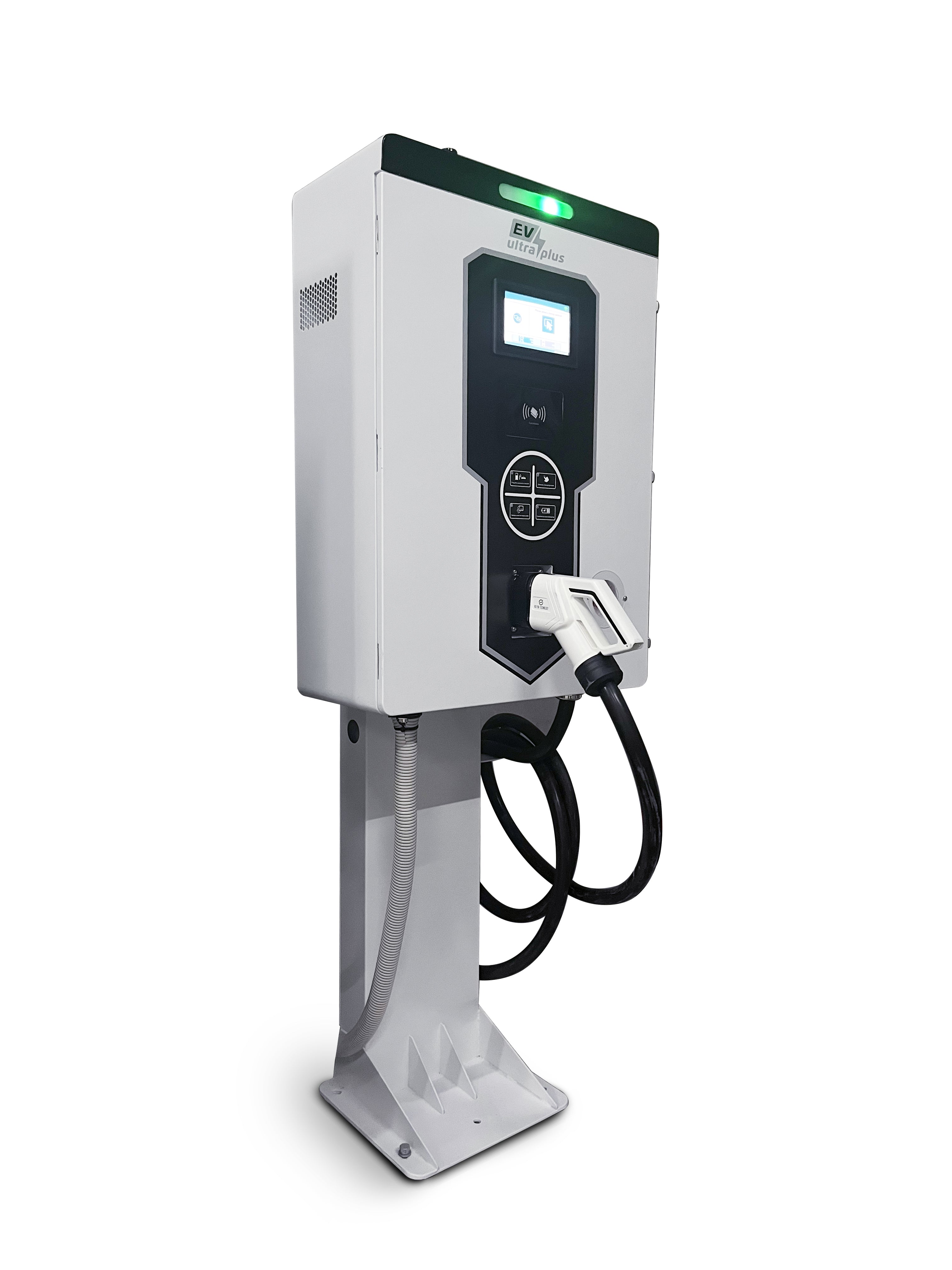

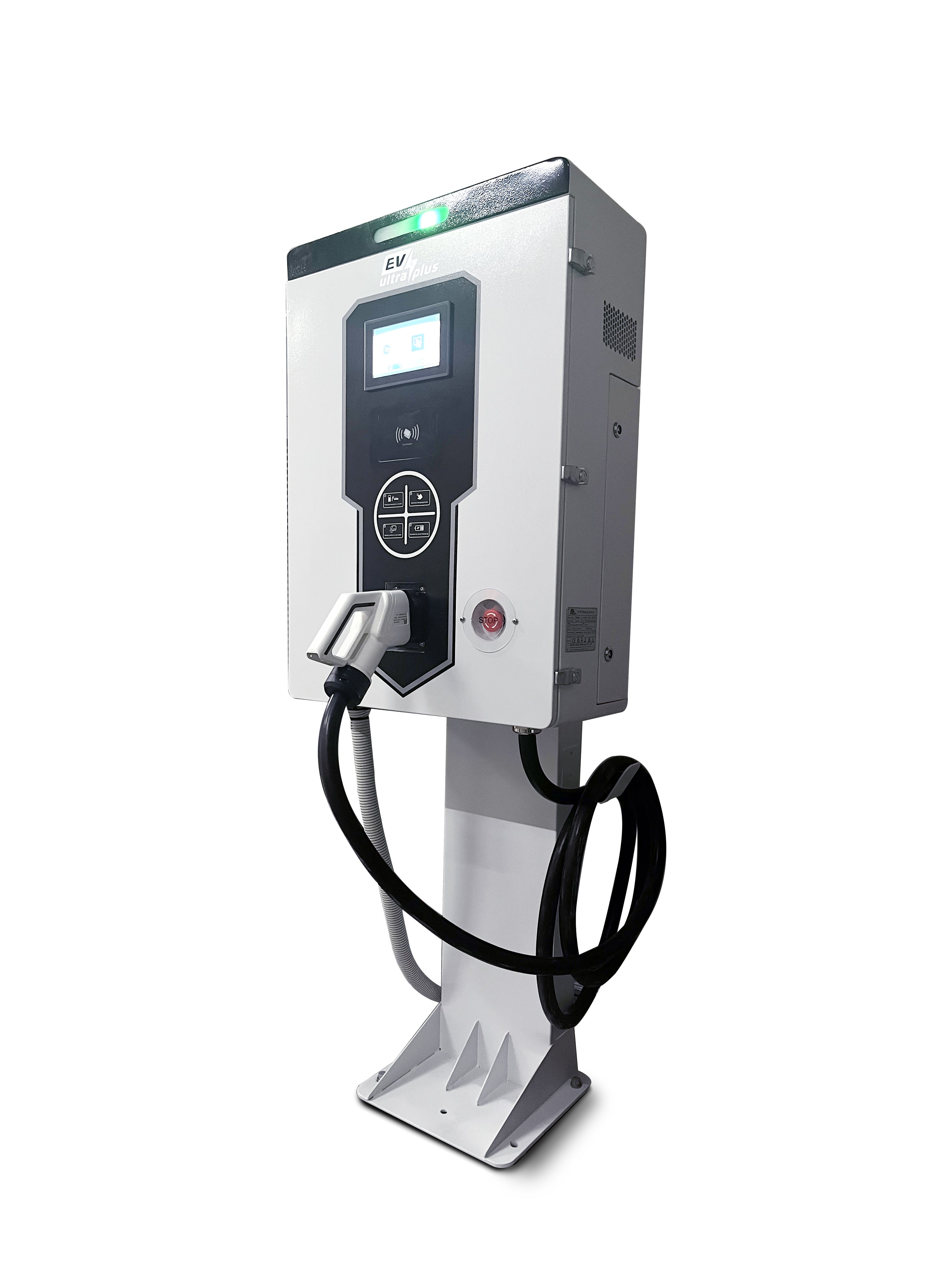

EVUP DC 30/40kW Smart Charger

Name: EVUP DC 30/40kW Smart Charger
Brand: EV Ultra Plus
Price: 999999.00 AUD
Availability: InStock

The EVUP DC 30/40kW Smart Charger is engineered to provide reliable and efficient DC charging for electric vehicles, combining advanced technology with robust safety features.

Ideal for commercial and urban charging solutions, the EVUP DC 30/40kW Smart Charger is compatible with a wide range of EVs and designed to support the growing demand for sustainable transportation.

Product variants

Key Features

Available in 30 & 40kW

4G Data Module

RFID Card Reader

Integrated Smart Chip – OCCP 1.6

Color LCD Display

Waterproof & Dustproof (IP56)

Short Circuit Protection

Overcurrent Protection

Overheat Protection

Surge Protection

5M charging cable

Technical Specifications

DC Output Connection
Charging mode: CCS2 or CHAdeMO
Output power: Rated power DC 30kW & 40kW
Output voltage: 200V ~ 1000V
Max output current: 100A (30kW) & 133A (40kW)
Number of outputs: 1*CCS2 or CHAdeMO
Peak efficiency >95%
AC Input Connection
Earthing system: 3P, N, PE
Input voltage/current: 3-phase 400V AC±15%, 46A (30kW) & 62A (40kW)
Input frequency: 45 ~ 65Hz
Power factor ≥0.99
Harmonic distortion (THDI) ≤5%
General Characteristics
IP and IK rating: IP56, IK08
Operating altitude ≤2000M
Operating temperature range: -30°C ~ +50°C
Storage temperature range: -40°C ~ +80°C
Mounting: Wall Mount / Pedestal Mount
Dimensions: H:900mm W:640mm D:290mm
Cable length: 5.0m Standard
User Interface
Status indication: LED / LCD / APP
User interface: Charge APP
Connectivity: 4G, LAN
Communication protocols: OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
User authentification: APP, RFID Card, Credit Card (Optional)
Software Update: OTA updates via web portal
Certification and Standards
Safety and compliance: IEC 61851; IEC 62196; IOS 15118; IEC 61000-4-5
EMC compliance: EN55011; EN55022
Warranty: 24 months, warranty extension possible
Safety Protection
Multiple Protection: Over / Under voltage protection, Overload protection, Short Circuit Protection, Over / Under temperature protection, Grounding Protection, Surge Protection.
